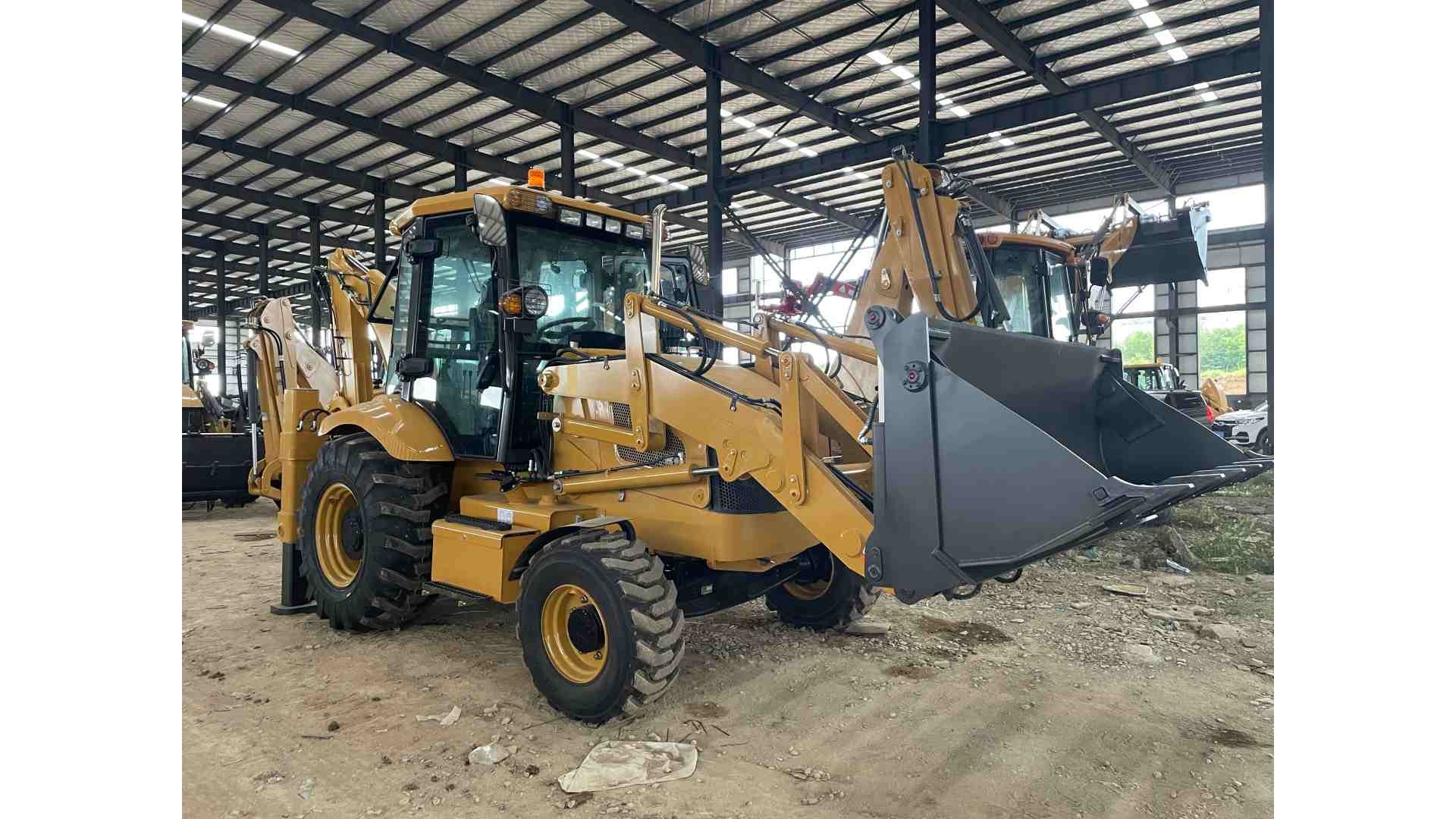

The BK100 is a high-performance, versatile backhoe loader engineered for medium-duty construction, municipal works, and agricultural projects. With a compact yet powerful design, it delivers excellent digging, loading, and lifting capabilities on any job site.

Powerful and Efficient Engine
At the heart of the BK100 is the reliable Yuchai YC4A105Z-T20 diesel engine, delivering 75kW at 2200rpm. It features low fuel consumption (230g/kW·h) and meets demanding operational standards, ensuring both power and economy.

Superior Loading Performance
Equipped with a 1.0m³ bucket, the loader unit offers a loading lifting capacity of 2500kg and a breakout force of 47kN. The dumping height reaches 2650mm with a dumping distance of 1025mm, making it easy to load trucks or hoppers.

Exceptional Backhoe Capability
The rear backhoe features a 0.3m³ bucket capacity and an impressive maximum digging depth of 4085mm. With a 180° swing angle, it provides excellent maneuverability in tight spaces.

Stable and Safe Operation
The BK100 rides on heavy-duty tires (14-17.5 front / 19.5L-24 rear) with a minimum ground clearance of 300mm. It achieves a top speed of 24km/h with a 2-forward/2-reverse gearbox. The service brake is an air-over-oil caliper type, supplemented by an emergency brake system for enhanced safety. The hydraulic system operates at 19MPa, ensuring responsive and powerful implement control.

The BK100 combines rugged reliability, operator comfort, and high productivity—making it an ideal choice for diverse earthmoving tasks.
