ATLAPEX AX20 Loader is a practical light-duty equipment machine widely used in construction, agriculture, small-scale mining, and municipal maintenance industries. It is primarily designed to load materials such as soil, sand, gravel, coal, and agricultural residues into trucks, trailers, or other storage facilities for transportation, and can also be used for tasks like site leveling, material stacking, and light shoveling operations.
Rated Power
Operating Weight
Rated Load
ATLAPEX AX20 Loader is a practical light-duty equipment machine widely used in construction, agriculture, small-scale mining, and municipal maintenance industries. It is primarily designed to load materials such as soil, sand, gravel, coal, and agricultural residues into trucks, trailers, or other storage facilities for transportation, and can also be used for tasks like site leveling, material stacking, and light shoveling operations.

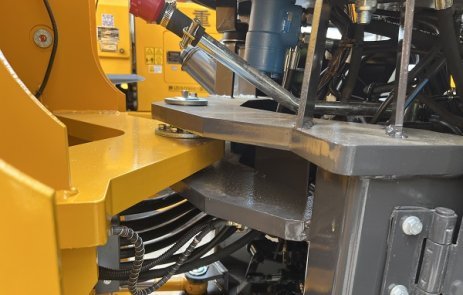

1-ATALPEX front end wheel loaders have a excellent durable joint joint. This increases stability, and results in higher levels of durability and control. High quality Only the best design elements and materials.

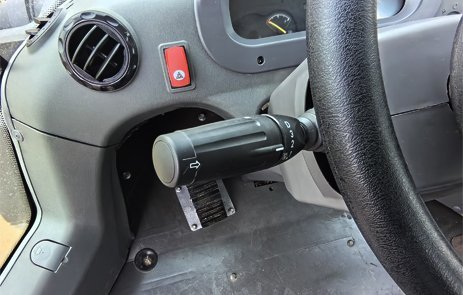

2-Humanized design, easier operation.

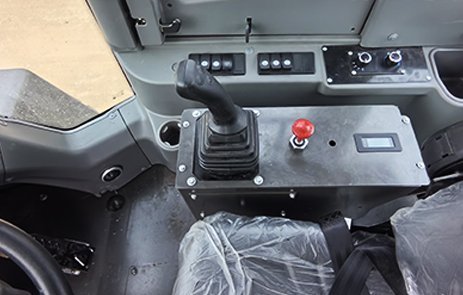

3-Equipped with functional armrest box and front multi-way valve, easy to operate and not prone to fatigue.

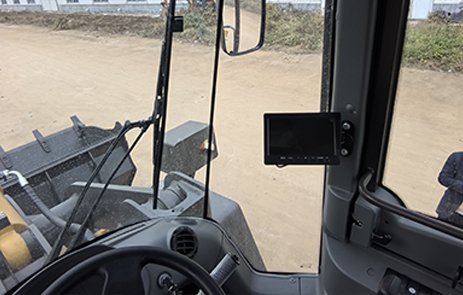

4-High-definition display screen ensures safe operation.
| Rated Load | 2000kg |
| Overall Weight | 5860kg |
| Bucket Width | 2250mm |
| Rated Bucket Capacity | 1.1m3 |
| Maximum Dumping Height | 3300mm |
| Dumping Distance | 1000mm |
| Overall Dimension (L×W×H) | 6510×2250×2880mm |
| Model | Yunnei 4102 Series Turbo Engine |
| Rated Power | 76kw |
| Wheel Base | 2595mm |
| Wheel Tread | 1660mm |
| Minimum Ground Clearance | 310mm |
| Parking Brake | Manual parking brake |
| Tyre Size | 16/70-20 |
