ATLAPEX Self propelled Telescopic boom lift has a platform height of 20-30 meters, a carrying capacity of 250kg, and a climbing capacity of 45%. It has a large horizontal ductility, a wide operating range and high efficiency. The boom lift provides users with a safe aerial work platform to meet the needs of challenging working conditions. Widely used in large steel, construction engineering, shipbuilding industry, curtain wall engineering, petrochemical and other industries
Max. Working Height
Max. Platform Height
Standard Working Capacity
Simple operation, high stability, no impact and no shaking;

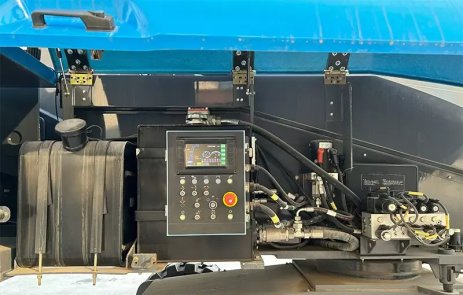

Adopt intelligent visualization, high-brightness large screen, display parameter calibration, operating parameters, display machine information, fault alarm and fault diagnosis system;
The power of the boom lift is strong, and well-known engines are used to provide strong power for the equipment;
The unique four-wheel traction system provides it with strong traction, making its climbing ability up to 45%;

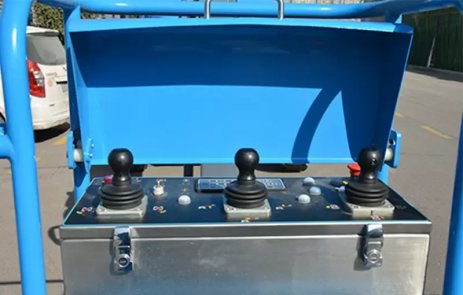

1-One person can operate easily running and lifting of the machine.

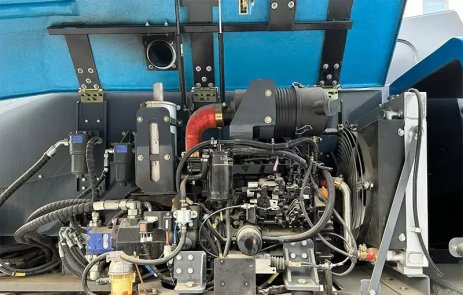

2-Large-capacity fuel tank ensures long-term operation of the equipment.

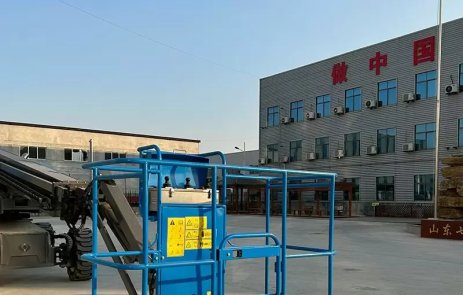

2-80°rotation, wide working area,automatic leveling function.
3-One person can operate easily running and lifting of the machine.

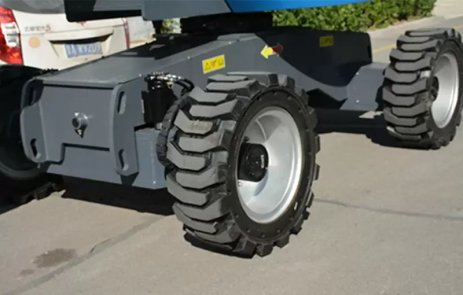

4-Large solid tire, excellent off-road performance.
| Model | APZB-24C |
| Working Height | 25.8m |
| Platform Height-Elevated | 23.8m |
| Platform Length | 2.44m |
| Platform Width | 0.91m |
| Overall Height | 2.9m |
| Overall Length | 12.50m |
| Overall Width | 2.49m |
| Wheelbase | 3.0m |
| Ground Clearance-middle | 0.43m |
| Platform Capacity | 250kg |
| Max. Number of Workers | 2 |
| Max working Radius | 15/17m |
| Driving Speed (Strowed) | 5.2km/h |
| Driving Speed (Raised) | 1.1km/h |
| Turning Radius (Outside) | 5.98m |
| Turning Radius (inside) | 2.5m |
| Turntable Tail Scanning | 1.48m |
| Platform Leveling | Auto |
| Platform Rotation | 160° |
| Turntable Rotation Angle | Continuous 360 ° |
| Gradeability | 45% |
| Max Working Angle | 5% |
| Tire(Drive Wheel) | 385/55-24 |
| Fuel Tank | 160L |
| Drive Steering | 4*4*2 |
| Machine Weight | 15500kg |
