ATLAPEX T4018 telehandler has a high degree of intelligent control, safety and efficiency. It is equipped with an electronically controlled hydrostatic transmission system as standard and adopts continuously variable speed drive technology to make the operation of the whole machine more stable and reliable. Intelligent independent cooling system, energy-saving and efficient.
Rated Power
Rated Load
Lifting Height
ATLAPEX T4018 telehandler has a high degree of intelligent control, safety and efficiency. It is equipped with an electronically controlled hydrostatic transmission system as standard and adopts continuously variable speed drive technology to make the operation of the whole machine more stable and reliable. Intelligent independent cooling system, energy-saving and efficient.

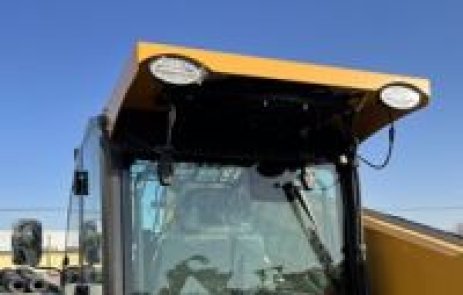

1,360° panoramic cab, wide field of view, convenient for driver operation.

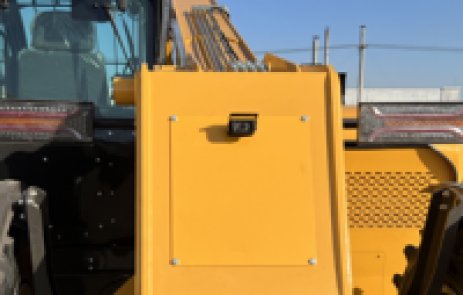

2,Rear HD camera for safer driving.
3,Side-opening hood with ample space for easy maintenance.

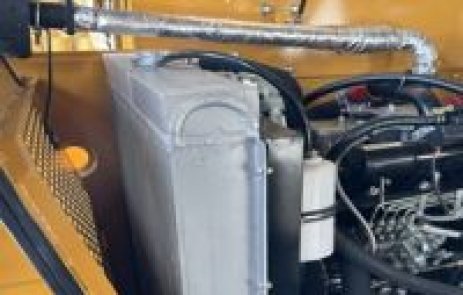

4,Thickened version of the radiator, the heat dissipation effect is more significant, ensuring the stability of the overall system.

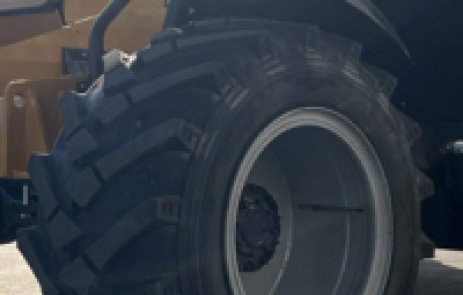

5,High-quality tires for all-terrain needs.
| Model | T4018 | |
| Max.capacity | 4000kg | |
| Max.lifting height | 17.6m | |
| Max.outreach | 12.8m | |
| Dimensions(L*W*H) | 6400*2350*2550MM | |
| Overall length to carriage | 6.4 m | |
| Length to face of forks | 7.62m | |
| Overall width | 2.35m | |
| Track width | 1.95m | |
| Overall height | 2.55m | |
| Wheel base | 3.6m | |
| Ground clearance | 0.38m | |
| Overall cab width | 0.84 m | |
| Tilt-up angle | 12° | |
| Tilt-down angle | 90° | |
| External turning radius(over tyres) | 4.1m | |
| Unladen weight(with fork) | 13600kg | |
| Tires type轮 | Tubeless | |
| Standard tires | 440/80-24 | |
| Forks length/width/section | ||
| Performances | 1220 mmx125 mm/50 mm | |
| Lifting | 16s | |
| Lowering | 12.4s | |
| Extension | 17.3s | |
| Retraction | 13s | |
| Crowd | 4.8s | |
| Dump | 4.0s | |
| Engine | Yuchai YCD4J22T-115 | |
| Max.fuel sulphur content | 5000 ppm | |
| Number of cylinders/Capacity of cylinders | 4-4400 cm³ | |
| I.C.Engine power rating-Power | 114 Hp/85 kW | |
| Max.torque/Engine rotation | 400 Nm @1400 rpm | |
| Drawbar pull (Laden) | 9930 daN | |
| Transmission | ||
| Transmission type | Torque converter | |
| Number of gears(forward/reverse) | 4-4 | |
| Max.travel speed | 40km/h | |
| Parking brake | Automatic air-cut brake | |
| Service brake | immersed multi-discs braking on front &rear axles | |
| Hydraulics | ||
| Hydraulic pumptype | Gearpump | |
| Hydraulic flow | 150L | |
| Tank capacities | ||
| Engine oil | 5.5L | |
| Hydraulic oil | 170L | |
| Fueltank | 195L | |
| Noise and vibration | ||
| Noise at driving position(LpA) | 79 dB | |
| Noise to environment (LwA) | 106 dB | |
| Vibration on hands/arms | <2.50 m/s² | |
