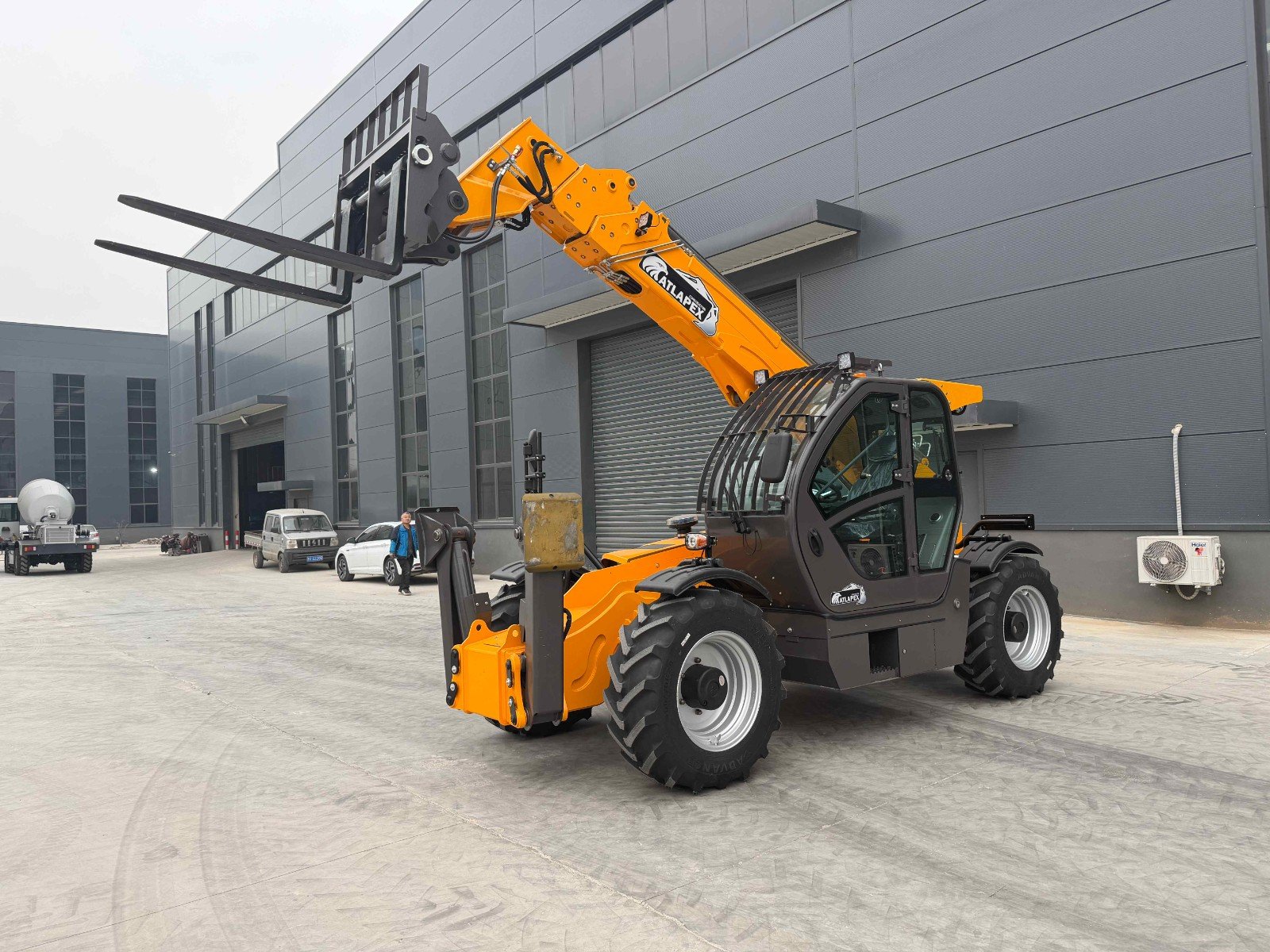

When your job demands heavy lifting, high reach, and tight maneuverability, the T4010 Telehandler delivers. Engineered for rugged construction sites, warehouses, and agricultural applications, this machine combines impressive strength with smart, space-saving design.

Lifting and Reach
With a maximum capacity of 4,000 kg and a lifting height of 10.6 m, the T4010 handles bulky loads with ease. Its outreach reaches 6.1 m, while the 90-degree tilt-down angle gives the operator excellent visibility for precise load placement.

Compact and Agile
Despite its power, the T4010 remains site-friendly. Dimensions of 5.8 by 2.2 by 2.55 metres and a tight external turning radius of just 4.25 metres allow you to work confidently in confined spaces.

Reliable Powertrain
Power comes from a Yuchai YCD4J22T-115 diesel engine (85 kW / 114 hp), delivering 400 Nm of torque at 1,400 rpm. The 4-speed torque converter transmission (4 forward / 4 reverse) drives a top travel speed of 35 km/h.

Fast Cycle Times
Work never stops – the T4010 lifts in 10 seconds, lowers in 7 seconds, extends in 12 seconds, and dumps in just 3.4 seconds. Hydraulic flow is rated at 150 litres for responsive attachment control.

Built to Last
The telehandler rides on 400/70-24 tubeless tyres, with an unladen weight of 10,300 kg. Service brakes are immersed multi-disc units on both axles, and the parking brake features automatic air-cut protection. Fuel tank capacity is 195 litres, hydraulic oil 170 litres – keeping you on the job longer.

Operator Comfort
Cab noise is limited to 82 dB(A) at the driving position, and hand-arm vibration stays below 2.5 m/s², reducing fatigue during long shifts.

The T4010 Telehandler – reach higher, lift heavier, work smarter.
