QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Engine

    Cummins 6CTA8.3

  • Operating Weight

    20000kgs

  • Rated Power

    240hp/179kw

DESCRIPTIONS

ATLAPEX Motor Grader simple and reliable full hvdraulic control, realizes all-round adjustment of various actions. On the premise of ensuring variousparameters, the system flow is smaller and the loss is lower. in the terms of the layout of hydraulic components, whether pumps,valves or pipelines, accessibilityis fully considered to facilitate maintenance.

The working device is completely manufactured according to the international advanced technology, and the weight distributionof the whole machine is reasonable, so that it can maintain excellent stability even when scraping a hard ground, to avoid themachine shaking which most competitors have.

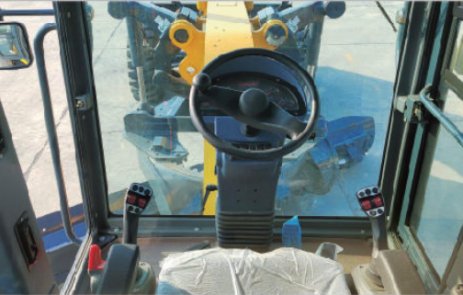

Humanized configurations

1-Spacious cab, wide field of vision, instrument monitoring, three-level alarm, control elements arranged according to ergonomic design, three,way adjustable vibration-ab sorbing seat, movable console that can be adjusted with the driver himself, etc. to create comfortable working environment for the operater.

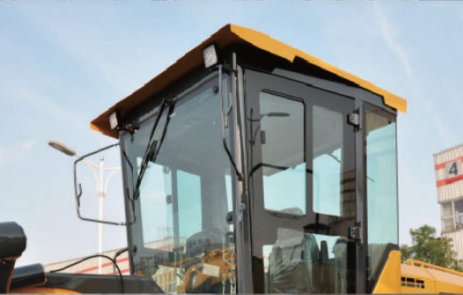

Safety cab

2-Newly upgraded cab, integral foreground glass, large field of vision design, air condition-ing air ducts toward more reasonable,improve driving comfort.

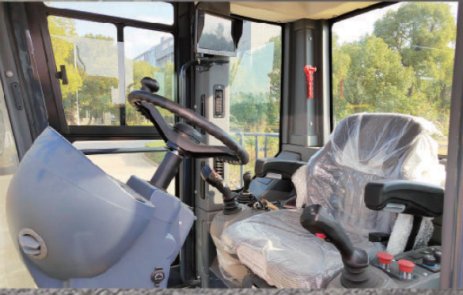

Good human-machineinteraction

3-Low vibration and noise, good vision, equipped with spacious and comfortable sealedcab, installed in isolation from the engine and transmission, minimizing the transmissionof noise and vibration, and providing excellent vision of the blade, equipment driving ancsteering vision.

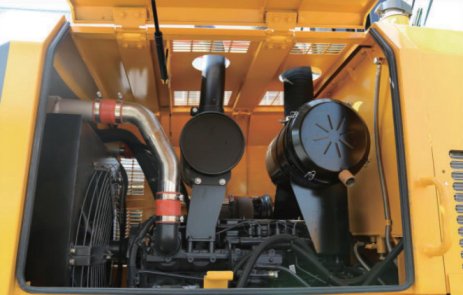

Convenient maintenance

4-Daily and periodic maintenance points are corbined together, two up-foldable swings ofthe enigine hood make daily check,oil or filter replacement and other maintenance much easier.

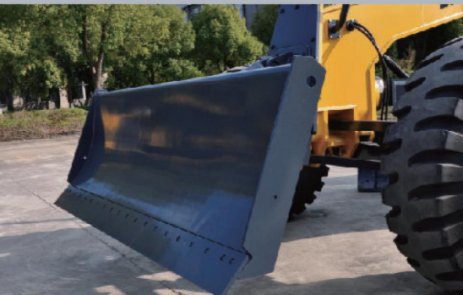

Front blade

5-A front blade is a front-mounted device used to spread materials such as gravel piles or shovel blades in areas where the front of the machine was difficult to reach.

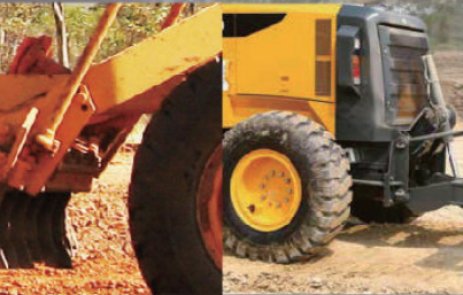

Scarifier(Mid-mount)/Ripper(Rear)

6-Can excavate hard materials that cannot be removed by a bulldozer, the scarifier canhold up to 11 teeth, and the ripper can also hold 3 to 7 teeth.

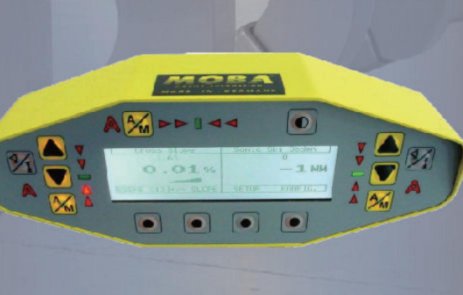

Automatic Leveling Device

7-As a 2D/3D control svstem, Automatic Leveling Device offers precise and reliableheight and slope control and a high level of flexibility in the choice of sensors andfields of application.

TECHNICAL PARAMETERS

4229e1cf4e5a5a9473169d2cb4f2076
Basic   specification
Engine modelCummins6CTA8.3-C240
Rated power179KW@2200rpm
Dimension(L×W×H)9250×2600×3420(mm)
Operating weight(Standard)20000KG
Performance   specification
Travelling speed ,forward5.0/8.6/11.3/19.3/24.3/38.8
Travelling speed ,reverse5.0/11.3/24.3
Tractive force(f=0.75)108KN
Operating   specification
Max. steering angle of front wheels49°
Max. lean angle of front wheels17°
Max. oscillation angle of front axle16°
Max. oscillation angle of balance box13°
Frame articulation angle26°
Min. turning radius using articulation8.3m
Blade
Maximum lift above ground450mm
Maximum grading depth500mm
Maximum blade position angle90°
Blade cutting angle29°~77°
Circle reversing rotation360°
Moldboard width × height4420×610mm
