Mobile scissor lift are used where big lifting capability is required. With working heights up to 85ft(26m) and capabilities up to 3000kg (2200lbs), they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.
Max. Working Height
Machine Weight
Rated Load
Normal lift height：4-18 meters，customized size from 20 meters to 26 meters
Normal power：Alternating Current 220V/380V. It can be equipped with DC and diesel power or both. We also can customize for you according to your local voltage.
Lifting speed：4-6m/min.
Platform load：300-2000kg.
Extendable platform：0-900mm，load 113kg.

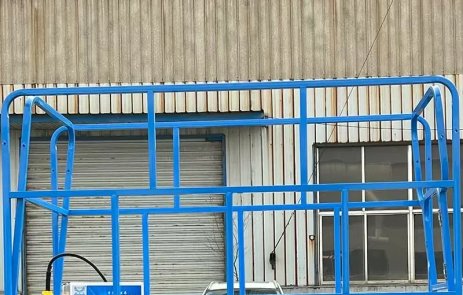

Guardrail：removable，height 1.1meter
Material：Q235 Carbon Steel.
Shaft Pin：butter nozzle for grease maintenance
Tubing groove: prevents oil tubing winding
Tires: normal pneumatic tires, can be customized solid tires.

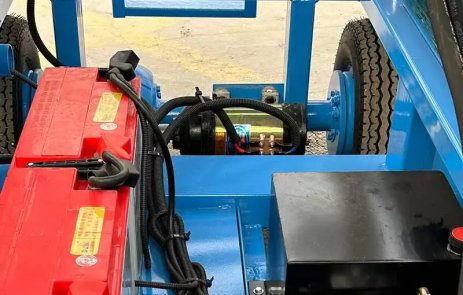

1-Using high-quality battery brand, more stable and safe.

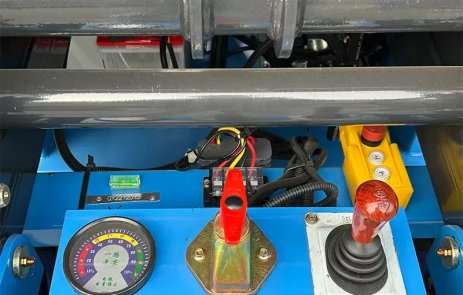

2-Operate the lifting of machine, also equip with emergency stop button.

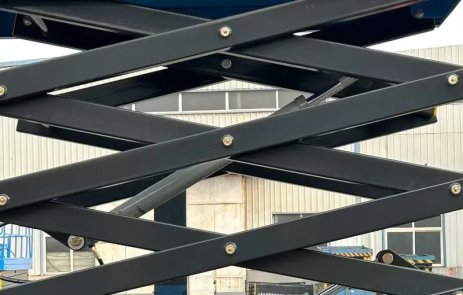

3-Q235 carbon steel, strong and stable.
4-Wide size and high loading capacity, meet multi-people to work at same time.

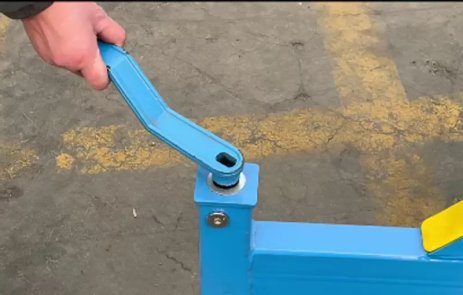

5-Use it to place and fix the outriggers.
| Model | APCY0.5-4 |
| Max. Working Height | 6.0m |
| Platform Height-Elevated | 4.0m |
| Platform Height-Stowed | 1.1m |
| Platform Length | 2.1m |
| Platform Width | 0.83m |
| Overall Size | 2.25×0.95×2.2m |
| Platform Capacity | 500kg |
| Max.Number of Workers | 6 |
| Lifting Speed | 4-6m/min |
| Tire | 400-8 |
| Machine Weight | 800kg |
