Compact and stable structure suits for big load, high-lifting.

Mast extends and retracts with small turning radius.

Branded Control system with multiple auto protection to provide higher level of function safety.

Branded vertical gearbox, multi-functional solution and flexible construction module system, optimizedgear meshing technology to reduce operating noise, provide high performance and efficiency.

EPS reduced 20% energy consumption and increases productivity.

Full AC Drive system, strong gradeability, maintenance-free.


Get Free Quote
ELECTIRC REACH FORKLIFT—CQDE15
ELECTIRC REACH FORKLIFT—CQDE15
ELECTIRC REACH FORKLIFT—CQDE15
ELECTIRC REACH FORKLIFT—CQDE15
ELECTIRC REACH FORKLIFT—CQDE15

SPECIFICATIONS

  • Rated Load

    1500kg

  • Operating Weight

    3100kg

  • Mix Lifting Height

    4500mm

DESCRIPTIONS

ATLAPEX electric reach forklift adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

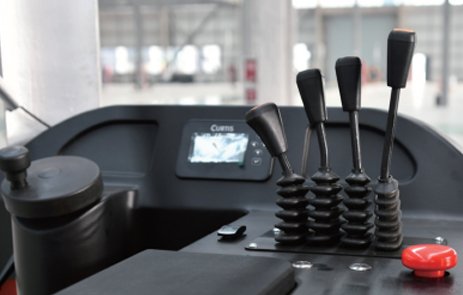

Platform

1-Ergonomic and comfortable seatoffer operator a comfortable condition.

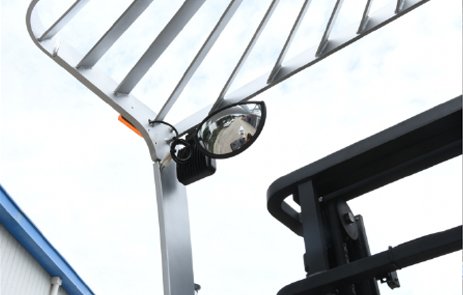

Rearview mirror

2-Semi-circle rearview mirrorenables a wider view.

Battery

3-Standard lead-acid battery, replaceable lithium battery.

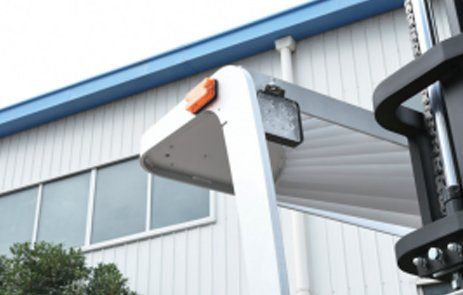

Heat Light

4-High-power lamps improve work safety.

Steering Wheel

4-High quality polyurethane wheels are more wear-resistant and have a longer life.

TECHNICAL PARAMETERS

ELECTIRC REACH FORKLIFT—CQDE15
PowerElectric
Operating TypeStanding Type
Load Capacity1500kg
Load Center500mm
Front Overhang183mm
Wheelbase1470mm
Forward Distance505mm
Self-weight With Battery3100kg
Wheel TypePU
Front Wheelφ267*114mm
Driving wheelφ382*142mm
Front Wheelbase1180mm
Mast Height After Mast Fall2105mm
Free Lift1500mm
Lift Height4500mm
Height,mast entended5465mm
Height of overhead guards2180mm
Fork Clearance when last   Lowered35mm
Fork tilting angle Front/Rear3/5°
Overall Length2477mm
Overall Width1270mm
Fork Size1070/100/35mm
Fork Spread210-705mm
Min.Ground clearace70mm
Min, Turning Radius1800mm
Travel Speed(Unload/Load)7.8/6.8km/h
Lifting Speed(Unload/Load)0.330/0.245m/s
Lowering Speed(Unload/Load)0.260/0.325m/s
Max.gradeability(Unload/Load)10%
Service BrakeElectromagnetic
Drive Motor6.5kw
Lift Motor6.3kw
Battery TypeLeas Acid
Battery voltage/nominal   capacity48V/300AH
Charger48V/40AH
Type of Drive ControlAC
Sound level at the driwer's   ear acc.75dB
