QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    1000kg

  • Operating Weight

    1320kg

  • Mix Lifting Height

    3000mm

DESCRIPTIONS

ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

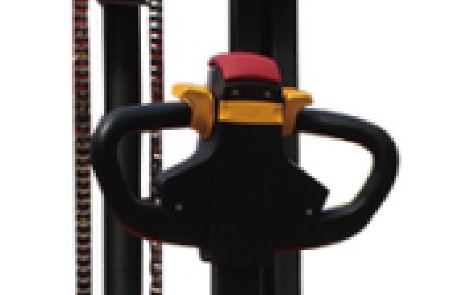

Handle

1-Ergonomic multi-function handle,integrated control of accelerate, horn,emergency reversing, lift and lower.

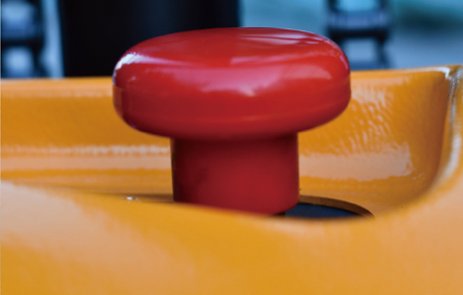

Emergency power off switch

2-Safer operation.

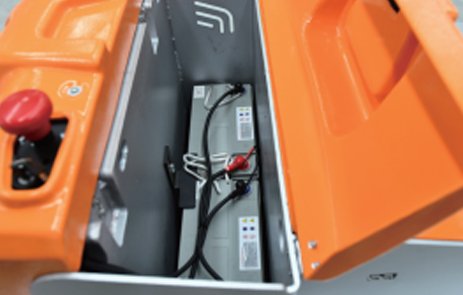

AC/DC driving system

3-Small volume, light weight, high efficiency andsmooth operation.

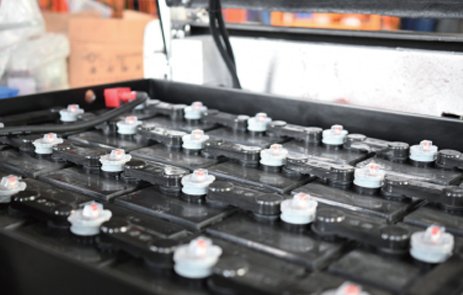

Battery

4-Built-in motor and easy charging.

Front RubberTire

3-It has a strong grip and great gradeability

TECHNICAL PARAMETERS

ELECTIRC PALLET STACKER—CPDW12
PowerElectric
Operating TypeWalkie Type
Load Capacity1000kg
Load Center500mm
Front Overhang71mm
Wheel Base1340mm
Total Weight(With Battery)1320kg
Wheel TypePU
Front Wheelφ140*100mm
Rear Wheelφ210*70mm
Wheel Tread,Front Wheel816mm
Mast Height After Mast Fall2065mm
Free Lift0mm
Lifting Height3000mm
Height,mast entended3913mm
Mast Height Lowered35mm
Overall Length1652/2573mm
Overall width916mm
Fork Size920/100/35mm
Fork Spread200-580mm
Min. Ground Clearance40mm
Min. Turning Radius1528mm
Travel Speed(Unload/Load)4/3.5km/h
Lifting Speed(Unload/Load)0.215/0.130m/s
Lowering Speed(Unload/Load)0.105/0.130m/s
Max.gradeability(Unload/Load)5/4%
Service BrakeElectromagnetic
Drive Motor0.75kw
Lift Motor2.2kw
BatteryLead Acid
Battery Voltage/Nominal   Capacity24V/100Ah
Charger24V/10Ah
Type Of Drive ControlAC
Sound level at the driver's   ear acc70dB
