SPECIFICATIONS

  • Rated Load

    1000kg

  • Operating Weight

    1700kg

  • Mix Lifting Height

    2500mm

DESCRIPTIONS

ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

Handle

1-Ergonomic multi-function handle,integrated control of accelerate, horn,emergency reversing, lift and lower.

Emergency power off switch

2-Safer operation.

AC/DC driving system

3-Small volume, light weight, high efficiency andsmooth operation.

Battery

4-Built-in motor and easy charging.

Front RubberTire

3-It has a strong grip and great gradeability

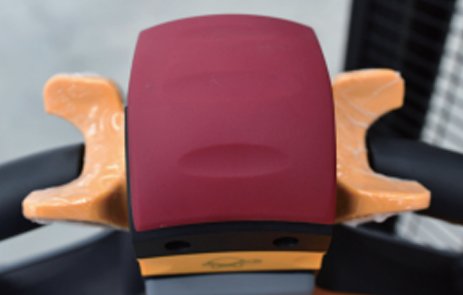

Belly button

6-It offers a buffering effect toensure safety.

TECHNICAL PARAMETERS

ELECTIRC PALLET STACKER—CPDB10
PowerElectric
Operating TypeStand Type
Load Capacity1000kg
Load Center500mm
Front Overhang129mm
Wheel Base1335mm
Total Weight(With Battery)1700kg
Wheel TypePU
Driving Wheelφ230*75mm
Front Wheelφ210*85mm
Rear Wheelφ150*50mm
Wheel Tread,Front Wheel898mm
Wheel Tread,Rear Wheel736mm
Mast Height After Mast Fall1845mm
Lifting Height2500mm
Height,mast entended3470mm
Overall Length(Without Fork)1757mm
Overall width983mm
Fork Size1070/100/35mm
Fork Spread210-680mm
Min. Ground Clearance70mm
Min. Turning Radius1652/2055mm
Travel Speed(Unload/Load)5/4km/h
Lifting Speed(Unload/Load)0.112/0.095m/s
Lowering Speed(Unload/Load)0.094/0.110m/s
Max.gradeability(Unload/Load)8/5%
Service BrakeElectromagnetic
Drive Motor1.5kw
Lift Motor2.2kw
BatteryLead-acid gel battery
Battery Voltage/Nominal   Capacity24V/210Ah
Charger24V/30Ah
Type Of Drive ControlAC
Sound level at the driver's   ear acc75dB
