QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Load

    2500kg

  • Operating Weight

    1632kg

  • Mix Lifting Height

    3000mm

DESCRIPTIONS

ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

Adjustable pedal

3-With adjustable forged forks

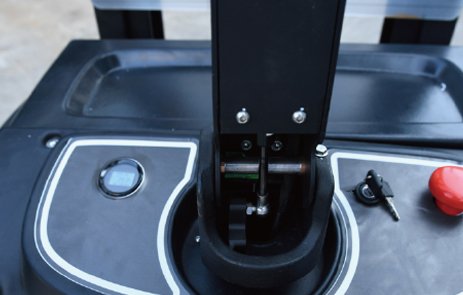

Platform

1-Ergonomic and comfortable platformoffer operator a comfortable condition

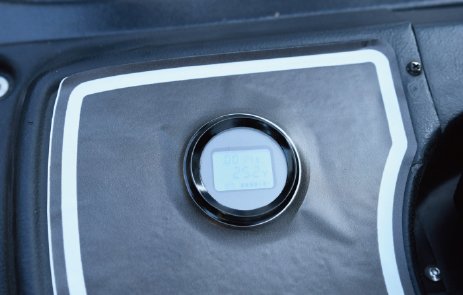

Emergency Power Off

2-EPO(Emergency Power Off) switch for safety.

TECHNICAL PARAMETERS

ELECTIRC PALLET STACKER—CDD25
PowerElectric
Operating TypeStanding Type
Load Capacity2500kg
Load Center500mm
Bearing Distance790mm
Wheel Base1577mm
Total Weight(With Battery)1632kg
Wheel TypePU
Front Wheelφ85*90mm
Rear Wheelφ230*75mm
Front Wheelbase530mm
Rear wheelbase758mm
Mast Lowered Height2188mm
Lift Height3000mm
Height,mast entended3571mm
Handle Height1430mm
Fork Clearance When last   Lowered95mm
Overall Length2235/2655mm
Overall width1000mm
Fork Size1150/230/75mm
Fork Spread760mm
Min. Ground Clearance30mm
Min. Turning Radius1880mm
Travel Speed(Unload/Load)5/4km/h
Lifting Speed(Unload/Load)0.117/0.08m/s
Lowering Speed(Unload/Load)0.082/0.140m/s
Max.gradeability(Unload/Load)6/4%
Service BrakeElectromagnetic
Drive Motor2.5kw
Lift Motor3kw
BatteryLead Acid
Battery Voltage/Nominal   Capacity24V/210Ah
Charger24V/30Ah
Type Of Drive ControlAC
Sound level at the driver's   ear acc75dB
