SPECIFICATIONS

  • Rated Load

    1500kg

  • Operating Weight

    3000kg

  • Mix Lifting Height

    4500mm

DESCRIPTIONS

ATLAPEX electric pallet stacker adopts the most scientificand advancing design ideas. lt is second to none.Hold the firm belief that the forklift can greatlyimproveyour warehouse space and improve your efficiency.

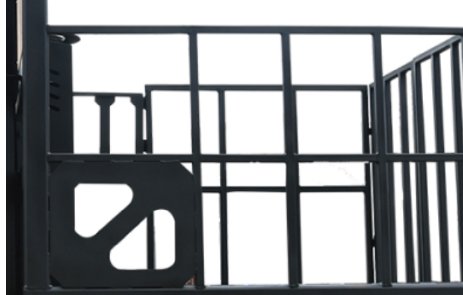

Picker cart

1-High position picking, lightweight, high mobility.

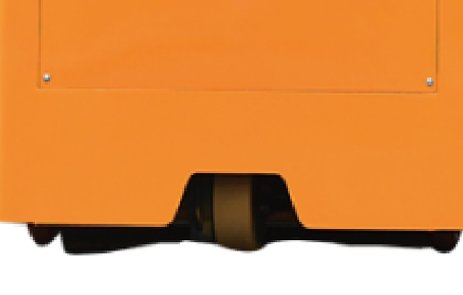

Driving Wheel

2-Smaller turning radius, more suitable for working in narrow spaces.

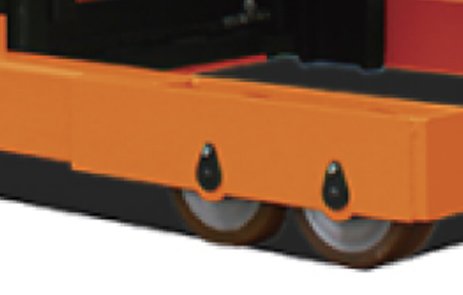

the Front Wheel

3-Double base leg structure makes it saferoperation and easy work close theground.

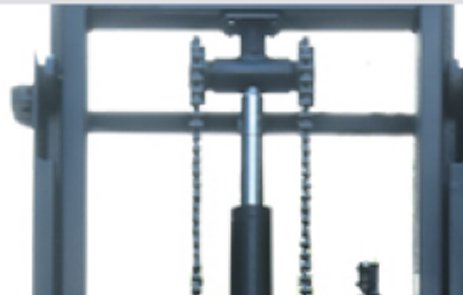

Cylinder

4-High quality cylinder.

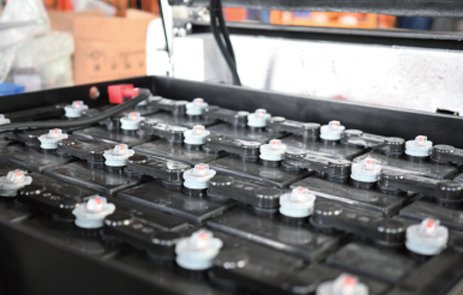

Battery

5-Replaceable lithium battery.

TECHNICAL PARAMETERS

PowerElectric
Operating TypePicking Type
Load Capacity1500kg
Load Center500mm
Wheelbase1845mm
Self-weight With Battery3000kg
Wheel TypePU Solid Tire
Front Wheelφ180*70mm
Driving wheelφ382*142mm
Wheel Tread (Front Wheel)1160mm
Lifting Height4500mm
Height,mast entended6670mm
Height of overhead guards2120mm
Overall Length2500mm
Overall Width1300mm
Fork Size920/122/40mm
Fork Spread210-770mm
Min.Ground clearace60mm
Aisle width(pallet   1000x1200mm)3670mm
Min, Turning Radius2140mm
Travel Speed(Unload/Load)5/3km/h
Max. gradeability(Unload/Load)10/6km/h
Service BrakeElectromagnetic
Drive Motor6.5kw
Lifting Speed(Unload/Load)0.275/0.215m/s
Lowering Speed(Unload/Load)0.150/0.195m/s
Lift Motor6.3kw
Battery TypeLeas Acid
Battery voltage/nominal   capacity48V/300AH
Charger48V/40AH
Type of Drive ControlAC
Sound level at the driver's   ear acc.75dB
