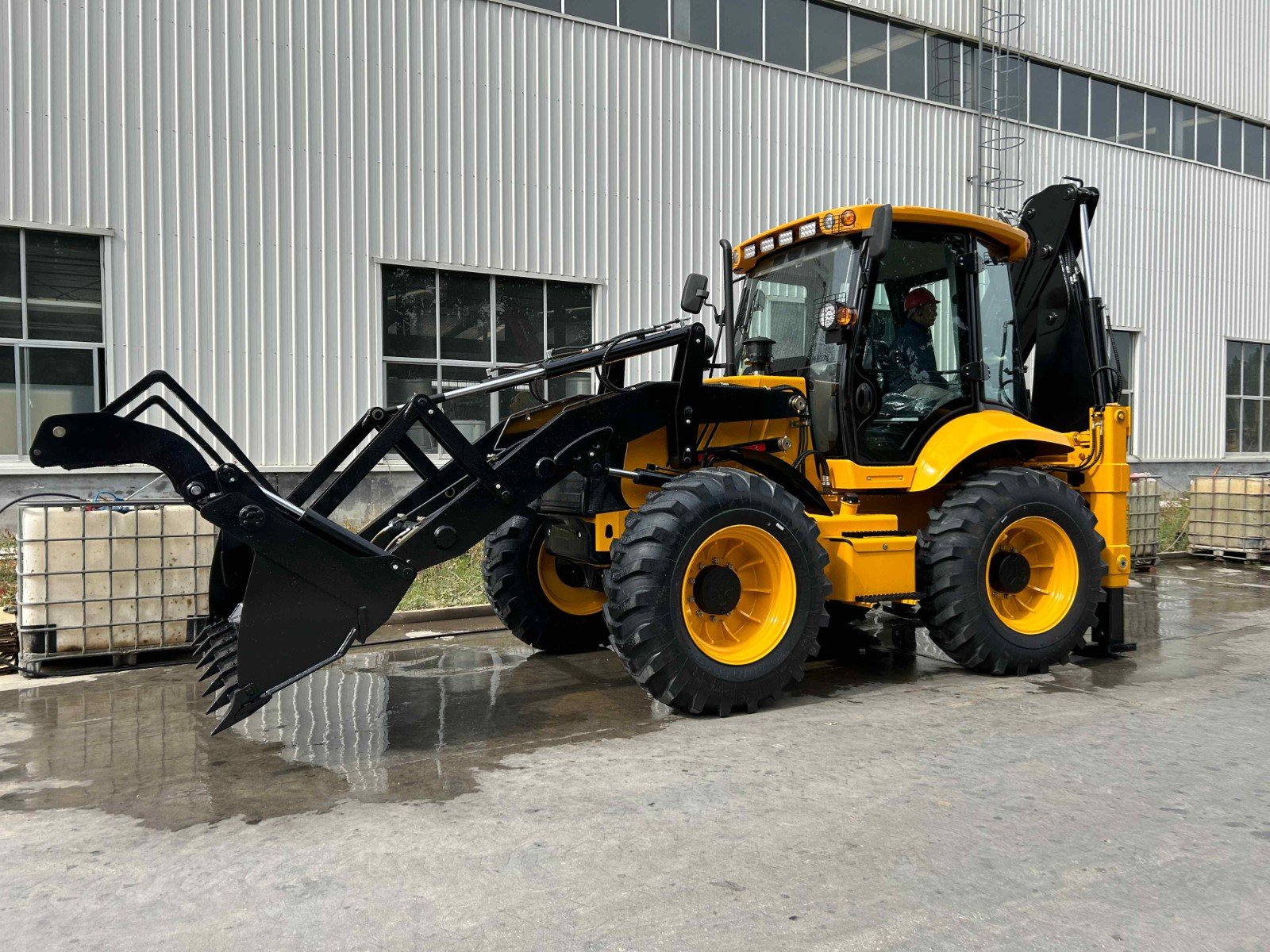

When a standard backhoe loader isn't enough for your toughest jobsites, the BK120 is your answer. Built larger and stronger than conventional machines, this workhorse delivers exceptional performance for heavy earthmoving, construction, and utility projects.

Why the BK120 stands out:

With an overall operating weight of 10,500kg and a massive 3,120mm minimum ground clearance, the BK120 provides superior stability and underbody protection – allowing you to work confidently on rough, uneven terrain where smaller machines struggle.

The loading bucket capacity is 1.2m³, paired with a 2,500kg lifting capacity and 47kN breakout force – perfect for moving heavy materials quickly. When digging is the job, the backhoe delivers a 0.3m³ capacity, an impressive maximum digging depth of 4,770mm, and a 50kN digging force. The 180° swing angle offers excellent maneuverability in tight spaces.

Powered by the reliable Yuchai YC4A105Z-T20 engine producing 75kW at 2200rpm, the BK120 combines power with efficiency. A single-stage three-element torque converter (model YJ320) and a mechanically operated hydraulic synchronous shift gearbox provide smooth operation across four forward and four reverse gears, reaching a top speed of 36km/h.

Safety and control are front and center. The service brake is gas-pushed oil type, while the emergency brake allows both operational power implementation and manual termination. Hydraulic system pressure is rated at 20Mpa.
