Backhoe loader BKA30

Backhoe loader BKA30 adopts central handover, small turning radius and flexible operation; adopts hydraulic transmission, four-wheel drive, stable performance and high reliability; the frame is all made of manganese steel plate, with high strength and long service life.

Get Free Quote

SPECIFICATIONS

Bucket Capacity

0.3m³
Backhoe Capacity

0.03m³
Rated Power

11.2 KW

DESCRIPTIONS

Backhoe loaders are commonly used in construction sites, road maintenance, and other heavy-duty jobs. They are known for their ability to handle a wide range of materials, including soil, gravel, rocks, and debris. They are also equipped with a variety of attachments that can be used for different tasks, such as buckets, hammers, and augers.

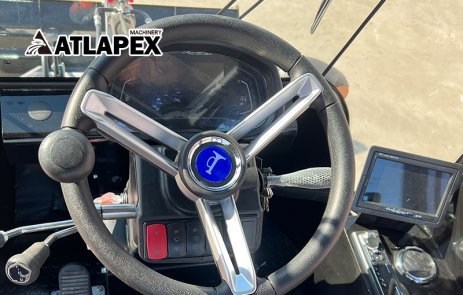

1-Dashboard for front loader, clear and concise, easy to operate

2-LED instrument panel with complete functions and clear signs

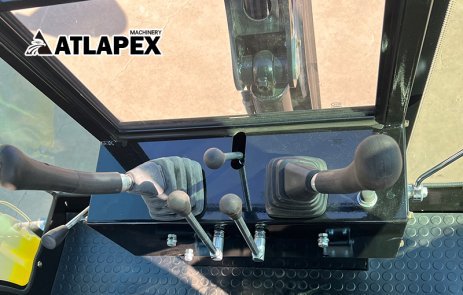

3-The operation space of the rear excavator is spacious, and it is surrounded by glass, which has a wide field of view and is easy to operate

4-Ergonomic design, comfortable and efficient

5-Efficient supercooling equipment is installed to effectively prevent engine high temperature

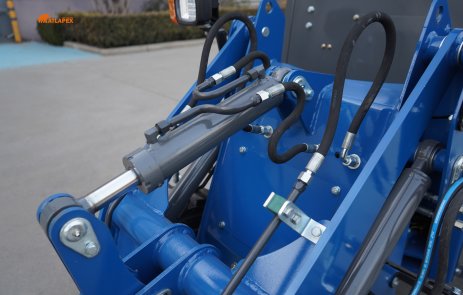

6-High-quality oil cylinders ensure the normal operation of the machine and realize the operation function

TECHNICAL PARAMETERS

Rated Load	500kg
LxWxH	3400x1200x2175mm
Bucket Capacity	0.3m³
Operating Weight	1500kg
Dumping Height	1738mm
Dumping Distance	700mm
Low/High gear	8/20 km/h
Track width	1150mm
Minimum ground clearance	200mm
Tyre	23*8.5-12

Service brake	Air brake
Parking brake	Mechanical
Outside of bucket	3100mm
Backhoe bucket capacity	0.03m³
Max.digging depth	1580mm
Max.digging radius	2670mm
Max.dumping height	2780mm
Max.digging height	2780mm
