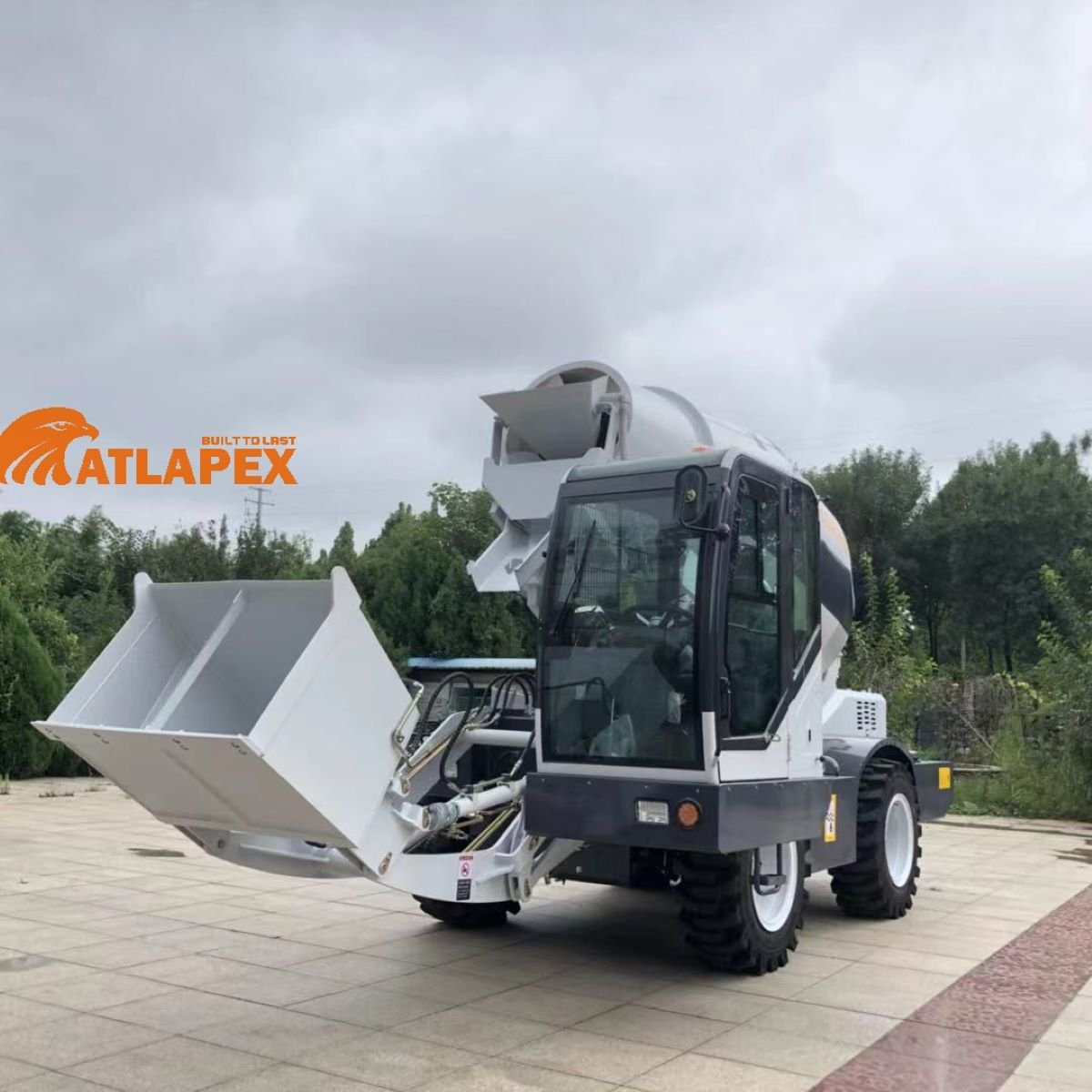

In the dynamic landscape of the global construction industry, efficiency and versatility are the keys to staying ahead. ATLAPEX has launched its flagship Self-Loading Concrete Mixer IN5500, a revolutionary all-in-one solution that redefines how concrete mixing operations are conducted. This standalone machine integrates aggregate self-loading, batch weighing, concrete mixing, transportation, and on-demand discharging—all operable by a single person—making it an indispensable asset for construction projects of all scales.

Wide-Ranging Applications Across Construction Sectors

The ATLAPEX IN5500 is designed to thrive in diverse construction scenarios. As both a highway-compatible and all-terrain machine, it excels in the construction of canals, residential buildings, industrial facilities, commercial complexes, and various other infrastructure projects. Its adaptability to different site conditions eliminates the need for multiple specialized machines, significantly streamlining project workflows.

Key Technical Specifications: Power Meets Performance

The IN5500 is engineered to deliver exceptional performance, backed by impressive technical parameters:

1.Mixing Capacity: 5.5m³, ensuring large-volume concrete production to meet project deadlines.

2.Total Weight: 9200KG, balancing stability and maneuverability on job sites.

3.Power: 115KW, providing robust energy for seamless operation even in demanding conditions.

4.Engine: Equipped with a reliable Yuchai engine, guaranteeing long-term durability and low maintenance costs.

Cutting-Edge Features for Unmatched Efficiency

1.Four-Wheel-Drive System: Offers high traction, enabling the machine to operate smoothly in extremely soft clay or uneven terrain—conditions that often challenge conventional mixers.

2.Hydraulic-Driven Mixing Drum: Delivers high rotational speed for efficient, uniform mixing. When the concrete is ready, the drum can be lifted for fast, precise discharging, minimizing waste.

3.Durable Steel Bucket: Allows the operator to easily load raw materials (aggregates, cement) into the mixing drum, reducing manual labor and loading time.

4.Centralized Cabin Control: The operator can regulate all key functions—loading, mixing speed, drum direction, and discharging—from the comfort of the cabin, ensuring intuitive operation and consistent performance.

5.Easy Transportability: The mixer can be conveniently loaded onto large vehicles for long-distance transportation to remote, narrow, or small-scale construction sites—addressing the logistical challenges of hard-to-reach project locations.

6.Flexible Discharging System: Enables the operator to adjust discharging angles and heights by controlling the mixing drum via a cabin-mounted handle. This flexibility ensures concrete is delivered exactly where needed, boosting work efficiency.

7.Automatic Weighing: The bucket features computerized automatic material weighing during loading and discharging, ensuring accurate batch proportions and high-quality concrete.

8.Efficient Mixing System: Blends aggregates and cement with water (from an independent system or manual supply) using power from the engine, consistently producing uniform, high-strength concrete.

Customizable Optional Configurations

ATLAPEX understands that every construction project has unique needs. To further enhance efficiency and operator comfort, the IN5500 offers a range of optional configurations:

1.Two-direction cab operation for greater flexibility in tight spaces.

Cement bucket for streamlined cement handling.

2.High-pressure car wash system for easy post-operation cleaning.

Hydraulic electronic balance for improved stability during loading.

Electronic shift for smooth, responsive gear changes.

3.Adjustable driving angle to match individual operator habits, reducing fatigue during long work hours.

4.Standard air conditioning to ensure a comfortable cabin environment in all weather conditions.

A Step Forward for Construction Productivity

The ATLAPEX Self-Loading Concrete Mixer IN5500 combines versatility, power, and user-friendly design to address the evolving needs of the global construction industry. By consolidating multiple functions into one machine, it reduces labor costs, shortens project timelines, and ensures consistent concrete quality—making it the ideal choice for contractors seeking to boost efficiency and competitiveness.

For more information about the ATLAPEX IN5500 or to inquire about customization options, contact our sales team today.
