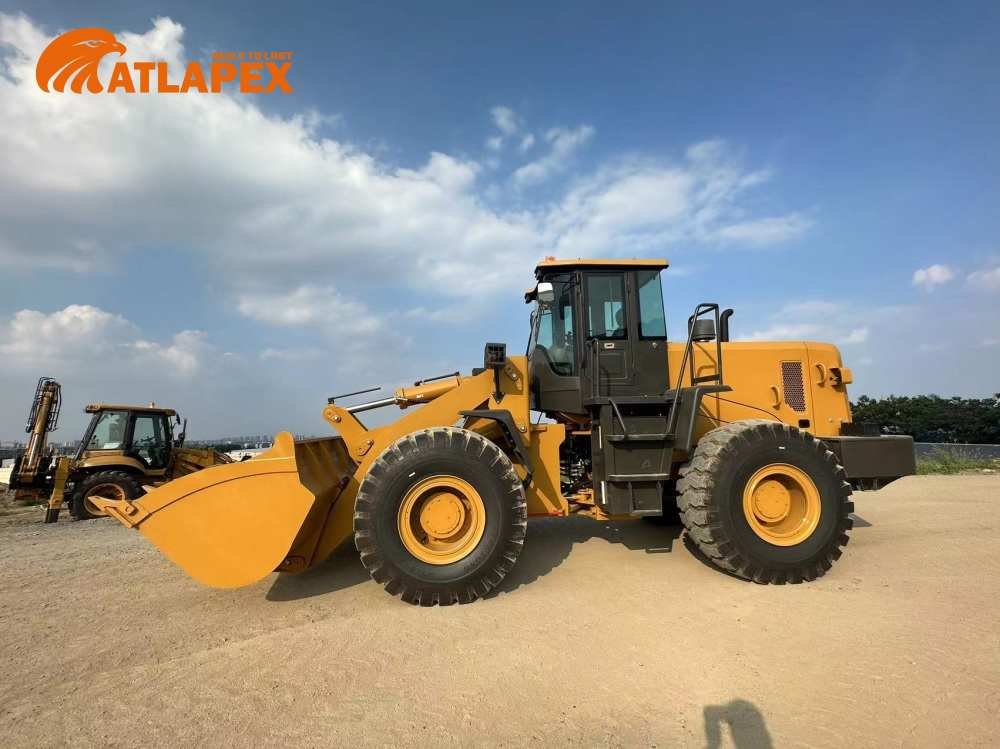

Designed for demanding applications such as mining, port handling, and large-scale construction, the ATLAPEX 6-ton wheel loader delivers exceptional power, durability, and efficiency.

Powerful and Reliable Powertrain

At the heart of this machine is the Weichai Steyr WD10G240E21 diesel engine, a rugged inline 6-cylinder unit with a rated power of 175kW. It delivers a maximum torque of 950N·m, ensuring strong performance even under heavy loads. With a minimum fuel consumption ratio of ≤208g/kW·h, the engine balances power and economy effectively.

The powertrain is complemented by a YJ375 torque converter and a powershift transmission with 4 forward and 4 reverse speeds, allowing a top travel speed of 38km/h. The maximum tractive force reaches 158kN, providing excellent pushing and climbing capability.

Outstanding Lifting and Breaking Force

With a rated load capacity of 6000kg and a standard bucket capacity of 3.3m³, this loader is built to move material quickly and efficiently. The maximum breakout force of 204kN gives it the power to penetrate tough material piles with ease. The machine can handle gradients up to 30°, making it suitable for challenging terrain.

Robust Dimensions and Stability

The loader measures 7965×3050×3470mm and has an operating weight of 17800kg, offering a solid stance and excellent stability. The wheelbase of 3200mm and wheel tread of 2250mm contribute to balanced performance during loading and traveling. The minimum ground clearance is 450mm, allowing the machine to navigate rough surfaces confidently.

Operator-Friendly and Easy to Maintain

The boom lifting time is just 6.05 seconds, with a total cycle time of 10.8 seconds, enabling fast and responsive operation. The system working pressure is set at 17Mpa, ensuring consistent hydraulic performance. The loader is also equipped with an automatic leveling function, improving loading accuracy and reducing operator fatigue.

Safety and Serviceability

Service brakes are air-over-hydraulic disc brakes on all four wheels, complemented by a manual parking brake. The 300L fuel tank supports long working shifts, and the 26.5-25 tires provide excellent traction and durability.

The ATLAPEX 6-ton wheel loader is a reliable, high-performance partner for your most demanding projects.
