Articulating Boom Lift APQB-15D

Self propelled articulating boom lift are Articulating boom lift feature an outstanding aerial working operation , making it ideal for aerial work. With easy-to-tow mobility and simple pictograph controls. The boom lift can overhang operation ,can overcome some obstacles or in a point lifting for more point work .this kind of lift can rotate 360 degrees ,large load capacity, mobile flexible ,transfer work place convenient ,appearance beautiful.

Get Free Quote

SPECIFICATIONS

Max. Working Height

16.7M
Max. Platform Height

14.7M
Standard Working Capacity

230KG

DESCRIPTIONS

Simple operation, high stability and no impact;

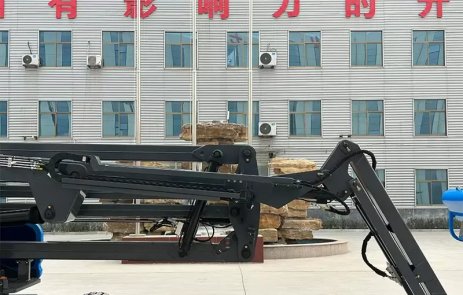

The boom is flexible, which is more suitable for complex and narrow working spaces;

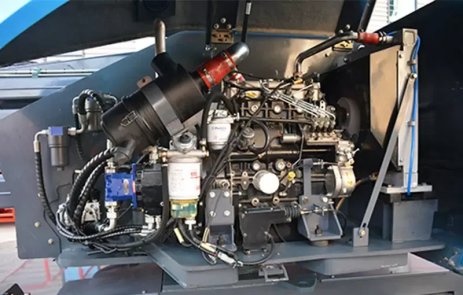

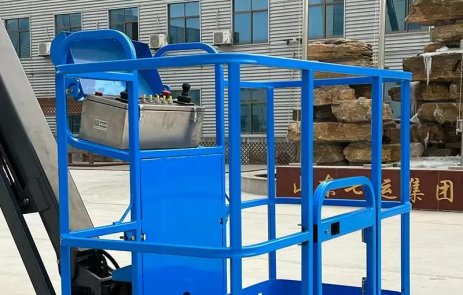

The platform is automatically hydraulically leveled, stable and reliable in operation;

Electric drive, noise reduction, no pollution, in line with environmental protection requirements.

1-One person can operate easily running and lifting of the machine.

2-One person can operate easily running and lifting of the machine.

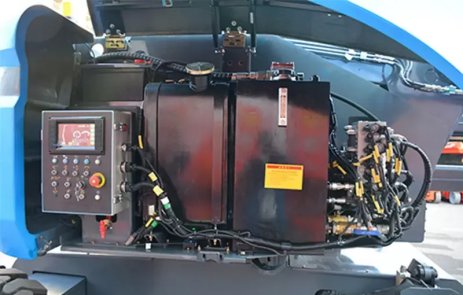

3-Large-capacity fuel tank ensures long-term operation of the equipment.

4-80°rotation, wide working area,automatic leveling function.

5-Security and stability.

6-Use the world famous brand parts to provide the stability and safety of machine.

TECHNICAL PARAMETERS

Model	APQB-15D
Working Height	16.7m
Platform Height-Elevated	14.7m
Platform Length	1.53m
Platform Width	0.76m
Overall Height	2.35m
Overall Length	7.70m
Overall Width	2.32m
Wheelbase	2.28m
Ground Clearance-middle	0.28m
Platform Capacity	230kg
Max. Number of Workers	2
Max Working Distance	9.6m
Max Crossing Distance	7.25m
Driving Speed (Strowed)	5.3km/h
Driving Speed (Raised)	1.1km/h
Turning Radius (Outside)	4.4m
Turning Radius (inside)	1.4m
Platform Leveling	Auto
Platform Rotation	80 °
Turntable Rotation Angle	355°
Gradeability	30%
Max Working Angle	5%
Tire(Drive Wheel)	26*12-16
Power Source(Battery)	6V*8
Drive Steering	2WD*2WS
Machine Weight	7210kg
