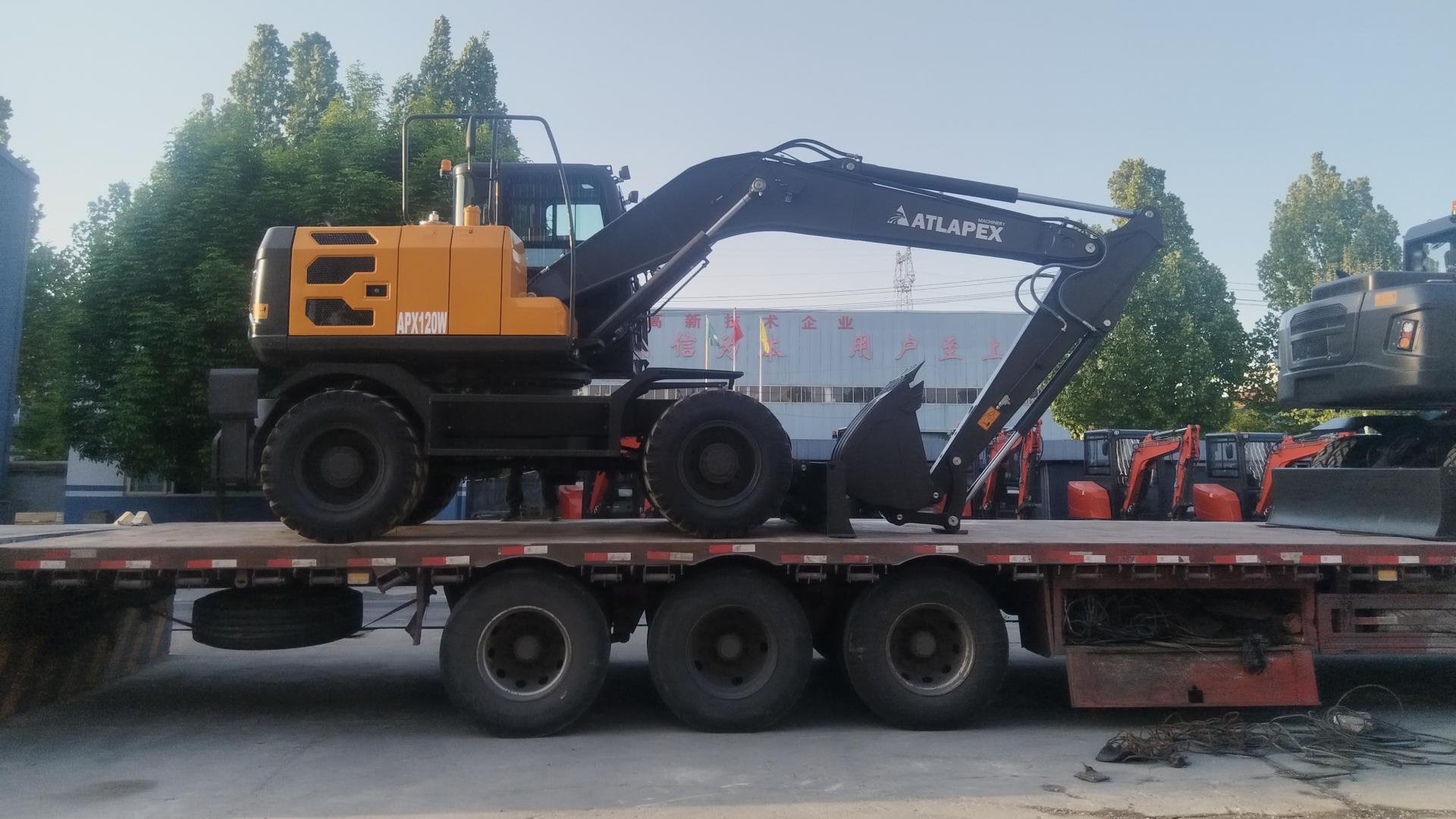

The APX120W is a powerful and agile wheeled excavator designed to tackle a wide range of construction and utility projects with ease. Powered by the reliable YC4DK100 engine delivering 74 kW at 2,200 rpm, this machine combines strong performance with excellent fuel efficiency.

With an operating weight of 11,000 kg and a standard bucket capacity of 0.4 m³, the APX120W offers exceptional digging force—75 kN at the bucket and 52 kN at the arm—ensuring efficient operation in tough conditions. The hydraulic system operates at 35 MPa, providing stable and responsive control for demanding tasks.

Mobility is a key advantage, featuring a 9.00-20 tire model, a 2,500 mm axle base, and a top swing speed of 11 rpm. The machine achieves a gradeability of 25°, making it well-suited for varied terrain. Its compact dimensions (7,285×2,270×3,010 mm) and a minimum ground clearance of 335 mm allow for excellent maneuverability on job sites.

The APX120W delivers impressive working ranges: maximum digging height of 8,300 mm, dumping height of 6,380 mm, digging depth of 4,330 mm, and digging radius of 7,580 mm. The dozer blade offers a lifting distance of 385 mm and cutting depth of 70 mm for enhanced site preparation capability.

Built for durability and versatility, the APX120W is your reliable partner for efficient excavation, loading, and material handling operations.
