QINGDAO ATLAPEX INDUSTRY CO.,LTD

SPECIFICATIONS

  • Rated Power

    160hp

  • Operating Weight

    16.4Ton

  • Max Tractor Force

    144 KN

DESCRIPTIONS

Main Features:

•Weichai WP10G178E355 engine has sufficient power, is easy to maintain, has the advantages of high combustion efficiency, and meets the national III emission standard.

•Planetary power shift, forced lubrication gearbox and hydraulic power assisted steering system make the machine easy to operate, with high power transmission and high production efficiency.

•Closed system can keep the water tank pressure at a specific value, which can improve the evaporation temperature and heat dissipation efficiency of cooling water. The fan power comes from the engine, and the forced air supply can increase the cooling effect.

•The mainstream 14MPa working hydraulic system has stable operation and overload protection function, which can greatly reduce the failure rate of hydraulic components.

•The use of waterproof connectors, new relays and integral injection molded instrument panel of the whole vehicle can effectively avoid electrical system failures. The instrument box integrates air conditioning, electrical appliances and instruments, making it more beautiful and high-end.

•The main frame of the full box type structure adopts the steel plate welded full box type integral structure, which is welded with the rear axle box as a whole. It has a high capacity to bear impact loads and resist bending and torsion. High quality welds ensure that the main frame has a full life cycle.

•The swing type of the splay beam and the suspension structure of the balance beam, which connect the rack and the walking system, can transfer the working load and impact load during operation to the main frame, effectively improving the stability during operation under complex working conditions.

•The standard straight tilt bulldozer has a strong cutting force and a three tooth scarifier, which can be used to loosen clay, hardened frozen soil and other soil layers, and has high efficiency and super penetration.



1

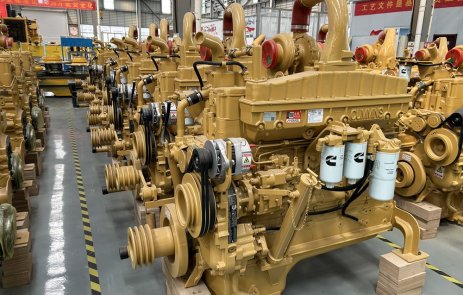

ATLAPEX bulldozer come equipped with a Weichai or Cummins series engine.These engine are purpose-built to produce high torque coupled with superior reliability,performance and more importantly,low fuel consumption.As big brand engines,they are covered under an international warranty package,users across the globe can tap on the OEM's service network conveniently

3

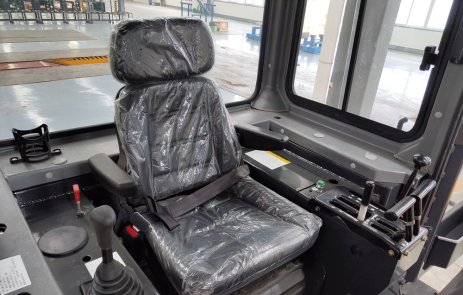

New hexahedral cab with large internal space and wide field of view, excellent vibration and well-damped cabin provides a comfortable working environment.Well-displayed instrument panel equipped for easy monitoring of all functions on board.

4

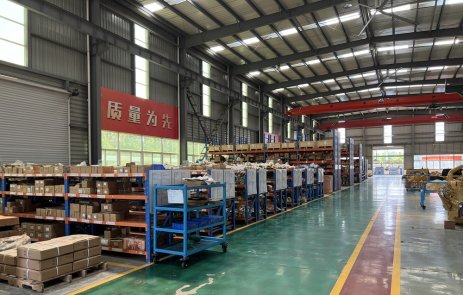

ATLAPEX Parts and Service Centers provides a convenient channel for you to order the original spare parts.From determining the correct part number to locatingand ordering,we are committed to working 24 hours for timely solutions and delivery to ensure we serve our customers promptly and efficiently. Our dedicated team of customer service executives,skilled engineers and technicians and well-trained to ensure timely and propitious support throughout the customer life cycle.

6

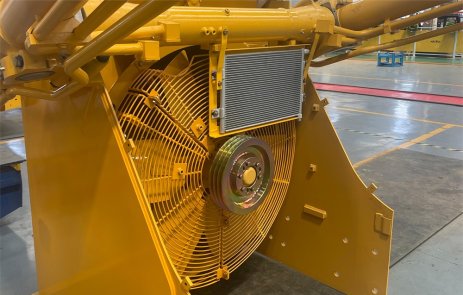

The closed system keeps the tank pressure at a specific value,which can increase the evaporation temperature and heat dissipation efficiency of the cooling water . An all-new enlarged radiator is designed for superior heat-dissipation,ensuring that the engine works at an ideal temperature.

2

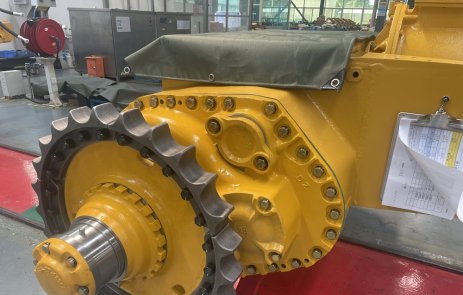

As the output parts of the final drive chain rail , hashigh requirements on the strength, wear resistance andservice life of the structure , ATLAPEX products are made ofhigh quality alloy steel, advanced forging and die quenchingtechnology ,Guarantee better performance than similarproducts in the market.

5

The undercarriage is the most frequently worn out components on bulldozer. therefore, a more durable undercarriage means lower running cost. ATLAPEX bulldozers adopt Japan Komatsu heat treatment technology on this undercarriage parts and equipped with distinctive lubricated track trains,which greatly improve the service life of undercarriage system

7

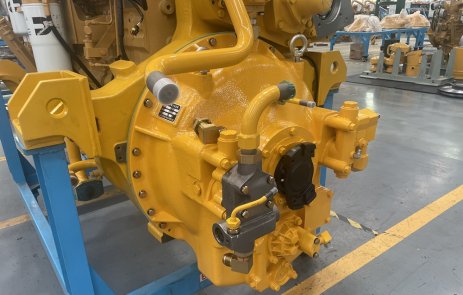

Based on a revolutionary 3-element,1- stage 1-phase design,the torque conveter can effortlessly transmits power from the engine to its final drive that minimizes power loss

8

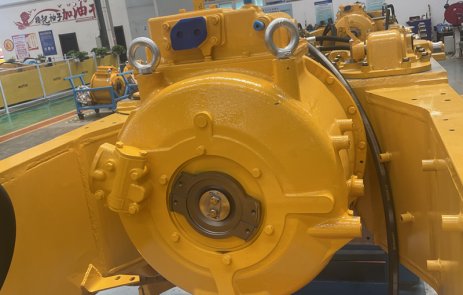

The power shift transmission box is planetary gears type,by operating hydraulic control valve for traveling forward and reverse. It features planetary gears,multi-diss clutch and hydraulically applied forced lubrication

TECHNICAL PARAMETERS

Dozer png
ModelAD16
Engine modelWeichai WD10G178E25
Rated power(kw/rpm)131/1850 kw/rpm
Displacement(L)9.726
Max.torque(N.m/rpm)830/1000-1200
Operating weight(Kg)17000
Dimension(no ripper)(mm)5140×3388×3032
Min ground clearance(mm)405
Ground pressure(MPa)0.067
Track shoe width(mm)510
Track gauge(mm)1880
Dozing capacity( m³)4.55
Blade width(mm)3390
Blade height(mm)1150
Max drop below ground(mm)540
Pitch(mm)203.2
Quantity of track link37
Quantity of Carrier rollers4
Quantity of Track rollers12
 Max pressure(MPa)14
Discharge(L/min)213
Max tractor force(KN)146
Grade ability(°)30
Forward(km/h)3.29/5.82/9.63
Reverse(km/h)4.28/7.59/12.53
